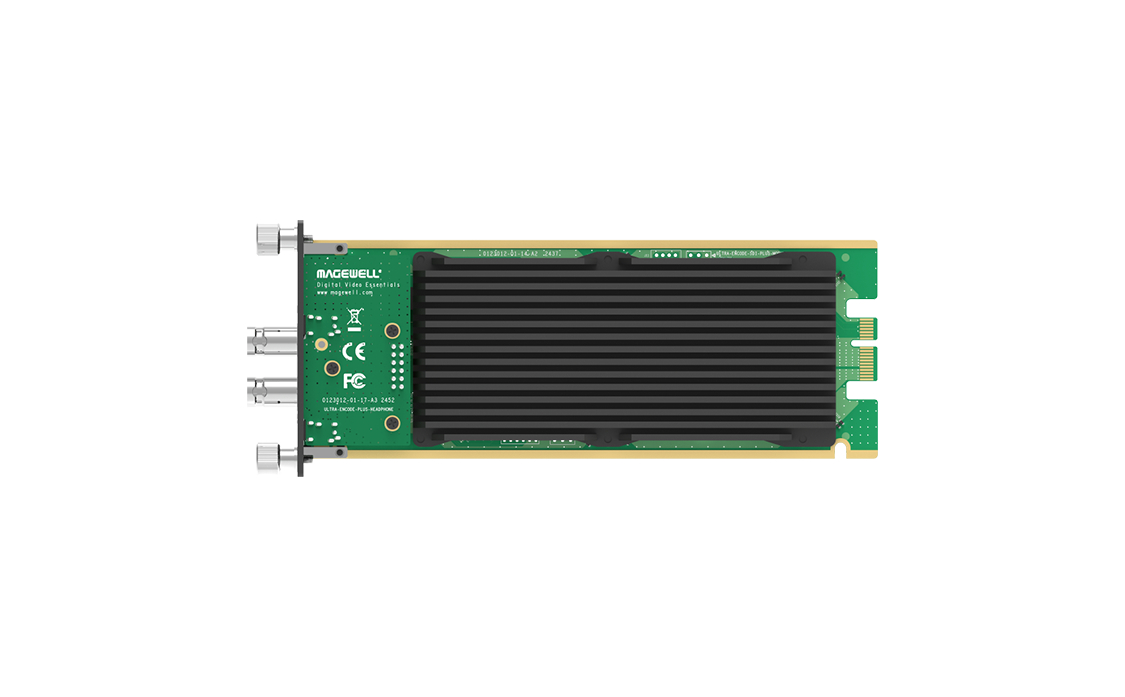

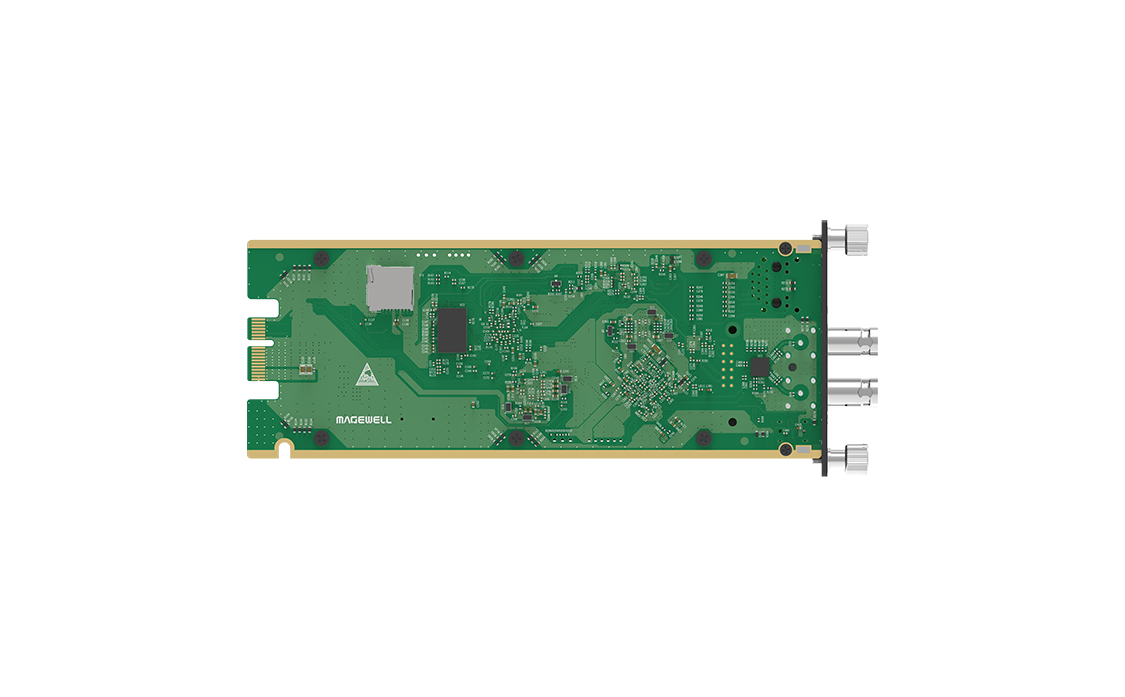

Ultra Encode SDI Plus Module
Standalone SDI encoder streaming to RTMP, SRT, NDI|HX simultaneously.
The Ultra Encode SDI Plus Module streams 3G-SDI input to RTMP, RTMPS, RTSP, SRT and NDI|HX simultaneously. XLR audio I/O for balanced analogue. Fits any Modator 2U chassis slot.
Designed for broadcast facilities and event venues with professional analogue audio infrastructure.
3G-SDIRTMP/SRT/NDI|HXXLR AudioBlade
💡
Need help choosing? Call us on +44 (0)116 277 5730 — Mon–Fri 9am–5pm
Key Features
- ✓Streams SDI to RTMP, SRT, NDI|HX simultaneously
- ✓XLR balanced audio I/O
- ✓H.264 + HEVC hardware encoding
- ✓Blade module for Modator 2U chassis
Ideal For
Rack-Mounted SDI Streaming
Broadcast SDI to IP streaming in a managed chassis.
Multi-Platform Distribution
Stream to multiple destinations from one blade.
Full Specifications
| Function | SDI to IP Streaming |
| Input | 1x 3G/HD/SD-SDI |
| Streaming | RTMP, RTMPS, RTSP, SRT, NDI|HX |
| Encoding | H.264 + HEVC hardware |
| Audio | XLR line in/out |
| Form Factor | Modator blade |
| SKU | B31610000 |
| Warranty | 2 Years |
Compatible Software
Magewell Control HubYouTube LiveFacebook LiveModator Chassis 2U
